Product Overview

Constant Temperature Adhesion Strength Tester is specifically designed for measuring the sustained adhesion (holding power / shear adhesion) of lithium battery tapes, pressure‑sensitive adhesive tapes, self‑adhesive labels, medical patches, protective films, waterproofing membranes, and other adhesive products. Strictly designed in accordance with GB/T 4851, ISO 29862, and ASTM D3654 standards, the instrument features micro‑computer control, high‑precision timing, and constant‑temperature control systems. It is a core testing instrument for quality control, R&D, and export certification in the adhesive industry.

Key Features & Advantages

Micro‑computer control with PVC operation panel – easy and convenient operation

Standard test plates and weights – strictly designed according to standards to ensure accurate test data

Six test stations – allows multiple tests simultaneously – economical and practical

Automatic timing and test‑end reminder – ensures high test accuracy

P.I.D. automatic temperature control – high precision temperature control

Safety protection – EGO over‑temperature cut‑off and safety overload switch

SUS#304 stainless steel interior + high‑grade baked enamel exterior – durable and aesthetically pleasing

Large color LCD display – shows test results, individual values, and statistical data

Touch screen control – clear, intuitive, and easy to operate

Built‑in micro printer – fast test result printing

User hierarchical permission management – ensures data integrity and standardization

ISP online upgrade capability – provides customized service

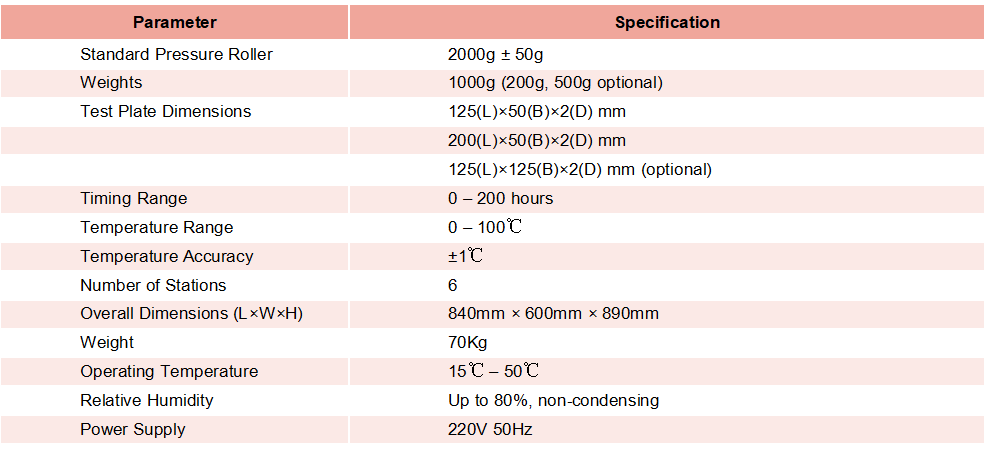

Technical Specifications

Compliance & Standards

GB/T 4851 – Test method for holding power of adhesive tapes

ISO 29862 – Determination of holding power for pressure‑sensitive adhesive tapes

ASTM D3654 – Standard Test Methods for Shear Adhesion of Pressure‑Sensitive Tapes

Standard Configuration

Main unit, Standard pressure roller, Test plates, Weights, Micro printer, Touch screen display
