Product Overview

Suitable for measuring the initial adhesion (tack) of various products including adhesive tapes, adhesives, and other related materials. The instrument complies with international standards such as FINAT Test Method No. 9 (Loop Tack Measurement) and ASTM, and is ideal for research institutions, adhesive import/export companies, inspection and quarantine agencies, and other relevant organizations.

Key Features & Advantages

Menu‑style interface with PVC operation panel

Micro‑computer controlled with large touch screen for easy operation

Compact, elegant, and user‑friendly design

High‑performance, stable, and reliable sensor system

Displays test results including maximum, minimum, and average values for easy data analysis

Built‑in micro printer for on‑demand test result printing

Humanized fixture design allows easy change of adhesion substrates

Standard RS232 interface for convenient connection to a PC and data transmission

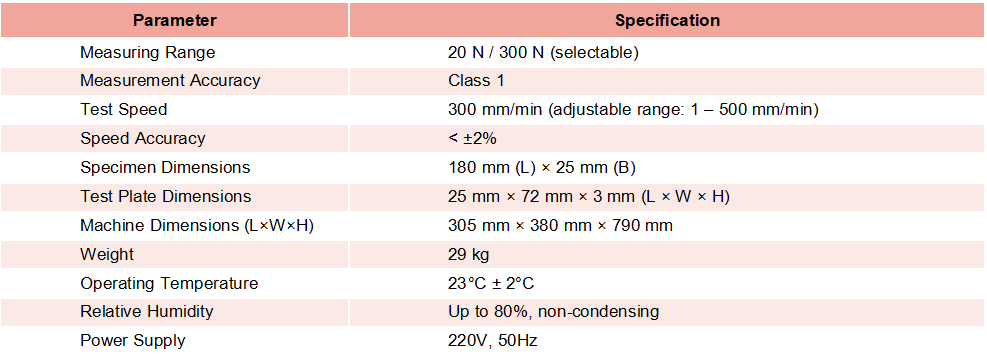

Technical Specifications

Compliance & Standards

GB/T 31125‑2014 – Test method for tack of adhesive tapes – Loop method

ISO 29862:2018 – Adhesives – Determination of peel adhesion properties

ASTM D6195‑22 – Standard Test Methods for Loop Tack of Pressure‑Sensitive Adhesives

Standard Configuration

Main unit, Micro printer, Fixture, Test plates
