Product Overview

Adhesive Tape Holding Power Tester – designed for measuring the shear adhesion / holding power of self‑adhesive labels, pressure‑sensitive tapes, protective films, adhesive patches, waterproofing membranes, and other adhesive products.

This holding power tester is used to evaluate the sustained adhesion performance of various adhesive products, including self‑adhesive labels, pressure‑sensitive tapes, protective films, transdermal patches, waterproof membranes, and more.

Key Features & Advantages

Large LCD display shows test process – stand‑alone operation without the need for a computer; stores and queries test results, eliminating the hassle of connecting to a PC for every test

Unique user hierarchical permission management ensures data integrity and standardization

Built‑in micro printer prints complete test information including instrument serial number, sample batch number, operator, test results, and test date/time

Test plates and weights strictly designed in accordance with standards to ensure accurate test data

Six test stations allow multiple tests to be conducted simultaneously

Automatic timing and test‑end reminder functions further ensure high test accuracy

Stores no less than 100 sets of data, with 6 data points per set

ISP (In‑System Programming) online upgrade capability provides customized service

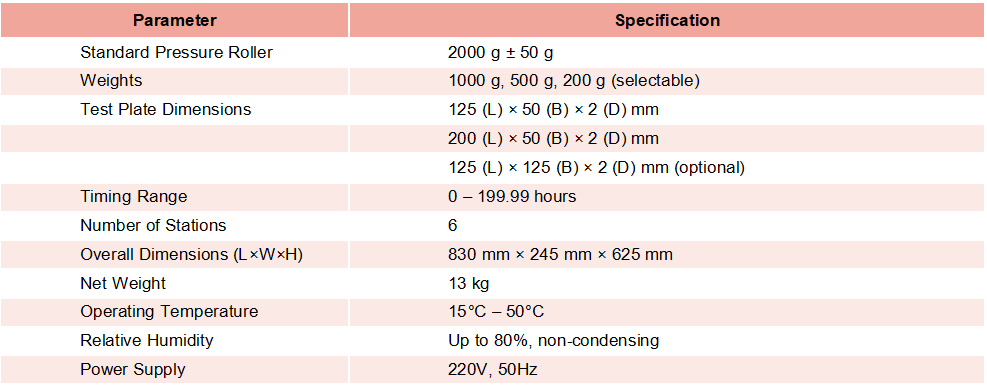

Technical Specifications

Compliance & Standards

GB/T 4851 – Test method for holding power of adhesive tapes

ASTM D3654 – Standard Test Methods for Shear Adhesion of Pressure‑Sensitive Tapes

JIS Z0237 – Testing methods of pressure‑sensitive adhesive tapes and sheets

GB/T 23260 – Test method for initial adhesion of adhesive tapes

Standard Configuration

Main unit, Micro printer, Fixture, Test plates
