Product Overview

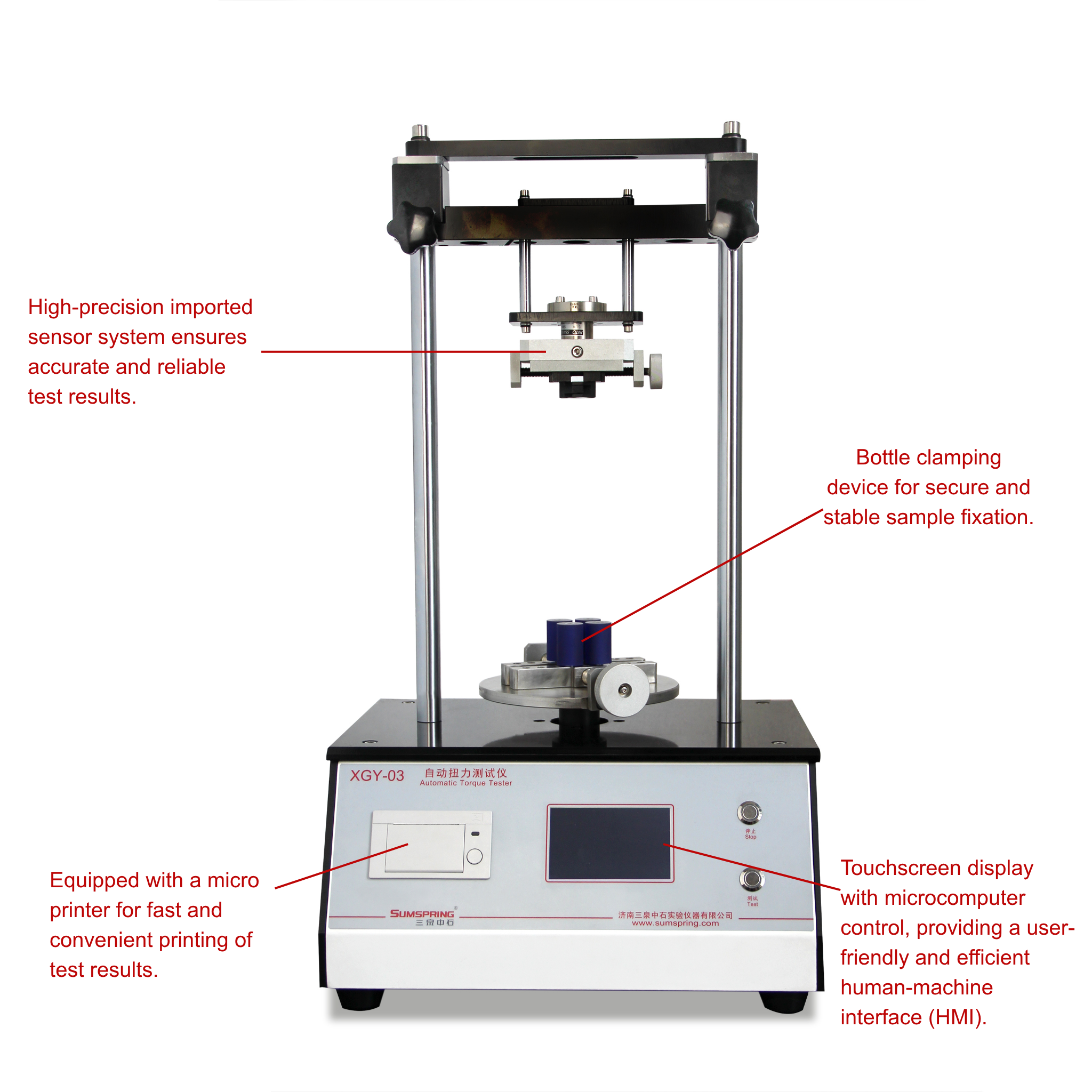

XGY-03S Automatic Torque Tester is designed for measuring the tightening, opening, and re-tightening torque values of caps on various packaging products, including vials, oral liquid bottles, beverage bottles, mineral water bottles, baby bottles, and oil containers.

Featuring both standard testing and fatigue testing modes, the instrument automatically performs bidirectional torque measurements on bottle caps, providing accurate and reliable data for quality control and packaging performance evaluation

Test Principle

The sample is placed on the torque tester, with the bottle body and cap securely fixed by special fixtures. The cap is then automatically rotated, generating torque that is detected by the sensor. The instrument measures the torque required to rotate the cap clockwise or counterclockwise, providing accurate opening and tightening torque values.

Key Features & Advantages

• Large color LCD display shows the test curve in real time, allowing users to clearly monitor the torque testing process.
• Dual testing modes: Standard Test and Fatigue Test, enabling fully automatic bidirectional cap torque measurement.
• Built-in micro printer for printing complete test information, including instrument serial number, sample batch number, operator, test results, and test date/time.
• Preset tightening or opening torque values; the instrument automatically rotates the bottle, minimizing human influence on test results.
• ISP online upgrade capability for customized software services and function updates.
• Local data storage, automatic processing, and statistical analysis of test data in compliance with GMP requirements.
• Ensures data traceability in accordance with GMP regulations, meeting the needs of the pharmaceutical industry.
• Optional Sumspring Link-DMS software system enables secure backup of original data in a non-editable database and supports PDF export.

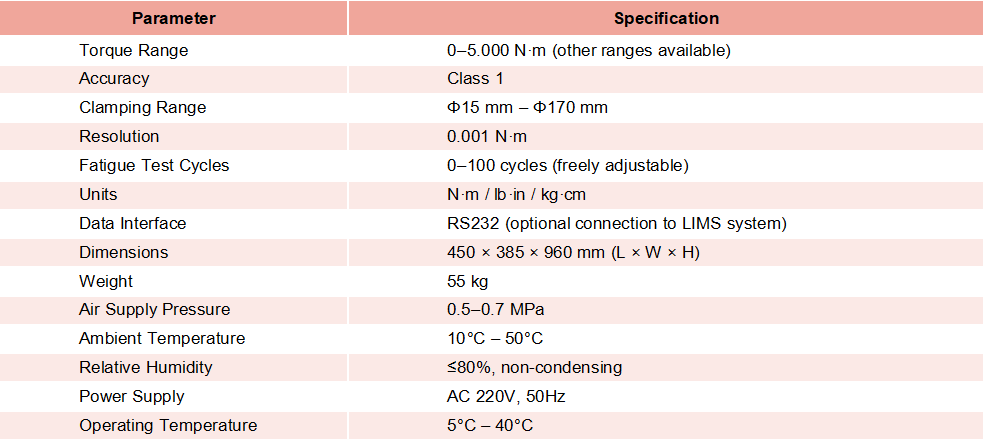

Technical Specifications

Compliant Standards

GB/T 17876-2010 Packaging Containers — Plastic Pilfer-Proof Closures

BB/T 0025 Plastic Pilfer-Proof Closures

BB/T 0034 Aluminum Pilfer-Proof Closures (GB/T 14803 Tamper-Evident Breakaway Closures)

YBB00052005-2015 Halobutyl Rubber Stoppers for Sterile Powder Injections

YBB00092002-2015 High-Density Polyethylene (HDPE) Bottles for Oral Liquid Pharmaceuticals

YBB00392003-2015 High-Density Polyethylene (HDPE) Bottles for External Liquid Pharmaceuticals

YBB00112002-2015 Polypropylene Bottles for Oral Solid Pharmaceuticals

Chinese Pharmacopoeia (2025 Edition)

ASTM D2063 Standard Test Methods for Measurement of Torque Retention for Packages with Continuous Thread Closures
