Product Overview

NLY-20U Cap Torque Tester is designed to measure the tightening, opening, and closure torque of caps on aluminum-plastic crimped vial caps, pharmaceutical plastic bottles, beverage bottles, mineral water bottles, baby bottles, edible oil containers, and other packaging products.

It is widely used in cap manufacturing, quality inspection centers, and the food, pharmaceutical, cosmetic, and packaging industries for torque performance testing and quality control.

Test Principle

The sample is placed on the torque tester, with the bottle body and cap securely fixed by special fixtures. The cap is then automatically rotated, generating torque that is detected by the sensor. The instrument measures the torque required to rotate the cap clockwise or counterclockwise, providing accurate opening and tightening torque values.

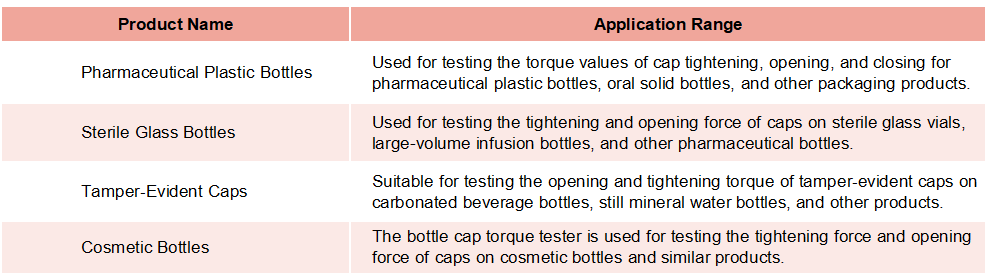

Applications

Key Features & Advantages

• Micro‑computer control, LCD display, and PVC operation panel for fast and intuitive viewing of test data and results
• Torque peak hold function with automatic peak release
• Dual measurement modes for tightening force and opening force
• Multi‑unit conversion between N·m, kgf·cm, and lbf·in to meet different standards
• Test result memory function for convenient data retrieval
• Set‑value alarm function for user‑defined standard setting
• Built‑in micro printer for fast data output and easy storage
• Professional control software provides statistical analysis of sample groups
• Standard RS232 interface and network transmission interface support centralized data management via LAN and data transmission over the Internet

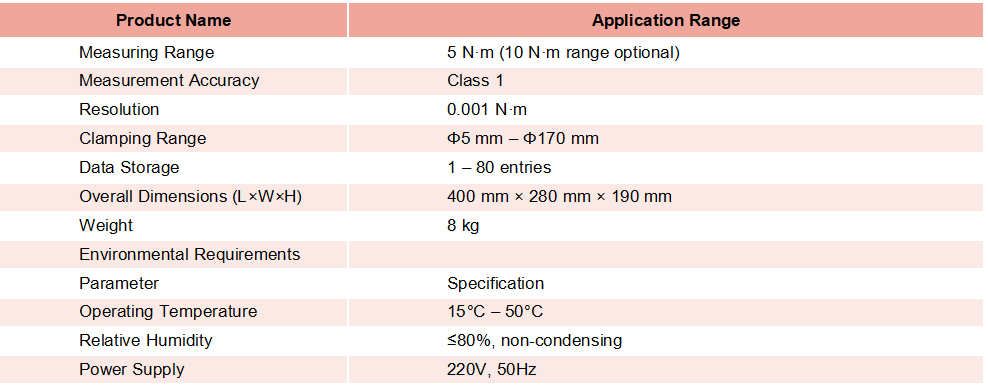

Technical Specifications

Compliant Standards

GB/T 17876-2010 Packaging Containers — Plastic Pilfer-Proof Closures

BB/T 0025 Plastic Pilfer-Proof Closures

BB/T 0034 Aluminum Pilfer-Proof Closures (GB/T 14803 Tamper-Evident Breakaway Closures)

YBB00052005-2015 Halobutyl Rubber Stoppers for Sterile Powder Injections

YBB00092002-2015 High-Density Polyethylene (HDPE) Bottles for Oral Liquid Pharmaceuticals

YBB00392003-2015 High-Density Polyethylene (HDPE) Bottles for External Liquid Pharmaceuticals

YBB00112002-2015 Polypropylene Bottles for Oral Solid Pharmaceuticals

Chinese Pharmacopoeia (2025 Edition)

ASTM D2063 Standard Test Methods for Measurement of Torque Retention for Packages with Continuous Thread Closures
