Product Overview
Sumspring HDY-03DS Syringe Plunger Sliding Force Tester is primarily designed for sliding force testing of disposable syringes, low‑resistance syringes, self‑destructive syringes, and pre‑filled syringes.
By simulating the actual use process of syringes, the instrument measures and records parameters such as speed, force, and resistance during plunger movement, and provides corresponding evaluation reports based on the test results.

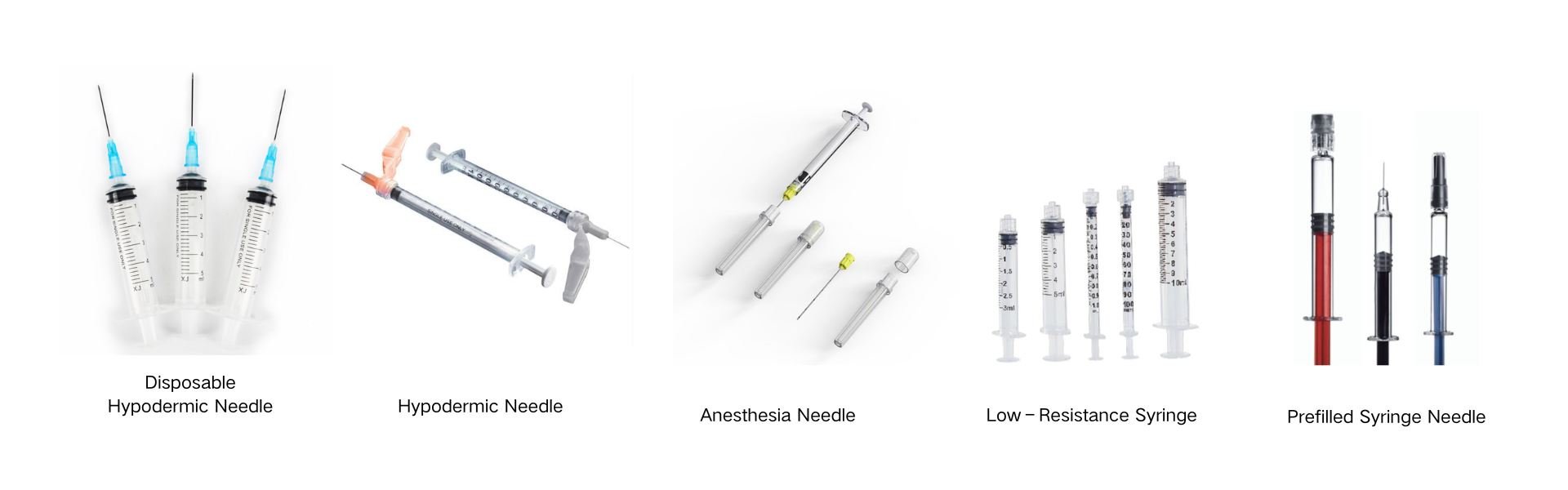

Application
Key Features & Advantages
- Large LCD display shows test process curves; PVC operation panel for easy use
- Imported brand sensor system delivers high test accuracy and ensures reliable test results
- Imported precision ball screw drive with stepless speed adjustment ensures accurate test speed and displacement control
- Built‑in micro printer prints complete test information including instrument serial number, sample batch number, operator, test results, and test date/time
- Professional humanized fixtures are easily interchangeable for different sample sizes
- ISP (In‑System Programming) online upgrade capability provides customized service
- High‑speed processing chip significantly improves operating speed

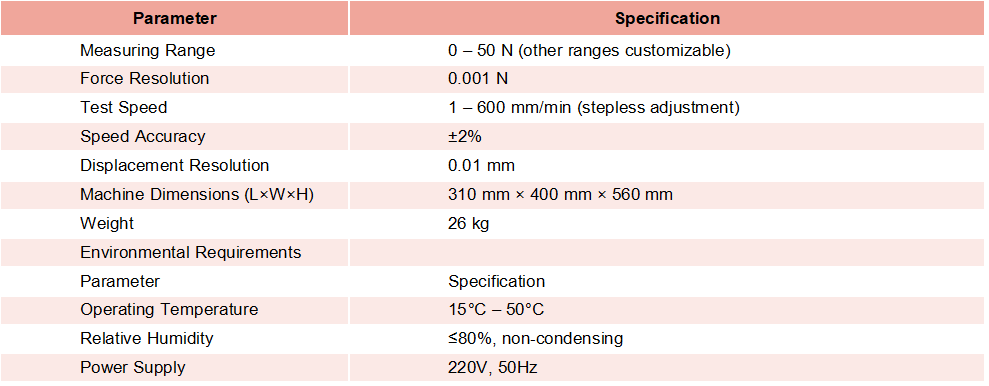

Technical Specifications
Compliant Standards
ISO 7886-1 Sterile hypodermic syringes for single use – Part 1: Syringes for manual use
GB 15810-2019 Sterile syringes for single use
YBB 00112004-2015 Prefilled syringe assemblies (with injection needle)
YY/T 0909-2013 Low‑resistance syringes for single use
