Product Overview

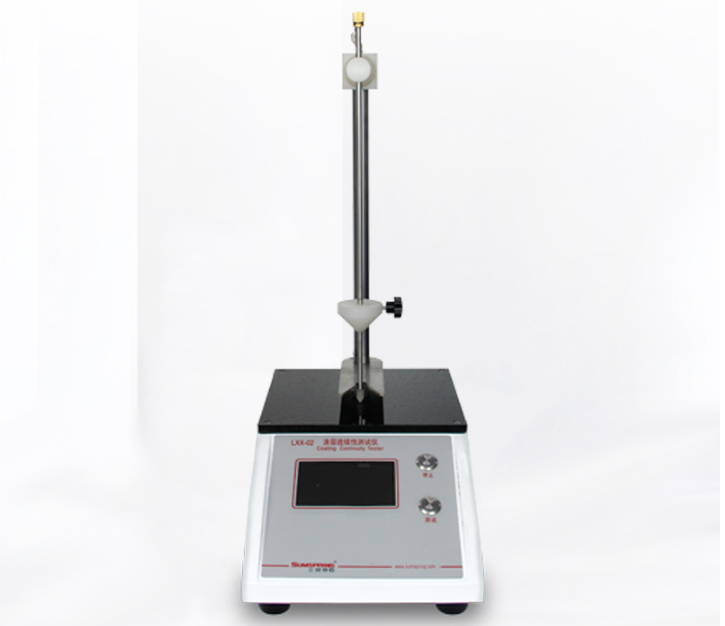

LXX-02 Coating Continuity Tester is designed for testing the inner coating continuity of aluminum pharmaceutical ointment tubes. It complies with the testing requirements of YBB 00162002-2015 "Aluminum Pharmaceutical Ointment Tubes." Featuring one‑button operation and a built‑in micro printer, the instrument enables fast printing of test results.
Test Principle
A PVC rigid sheet specimen is clamped on the tester. A steel ball is dropped from a set height onto the center of the specimen. Damage is checked and the damage rate is calculated after repeated tests.
Key Features & Advantages
- One‑button operation – the instrument completes the entire test timing cycle automatically without manual intervention
- Adjustable fixture accommodates all types of specimens with a wide range of applications
- High‑speed processing chip significantly improves operating speed
- Built‑in micro printer prints complete test information including instrument serial number, sample batch number, operator, test results, and test date/time
- Large LCD display shows test process; PVC operation panel for easy use
- Single instrument meets test requirements for tubes under different standards
- ISP (In‑System Programming) online upgrade capability provides customized service
- GMP‑compliant data management – local storage, automatic processing, and statistical test data analysis
- Meets GMP requirements for data traceability, satisfying the needs of the pharmaceutical industry
- Optional Sumspring Link‑DMS testing software system allows raw data to be backed up on a computer as an unalterable database and exported as PDF files

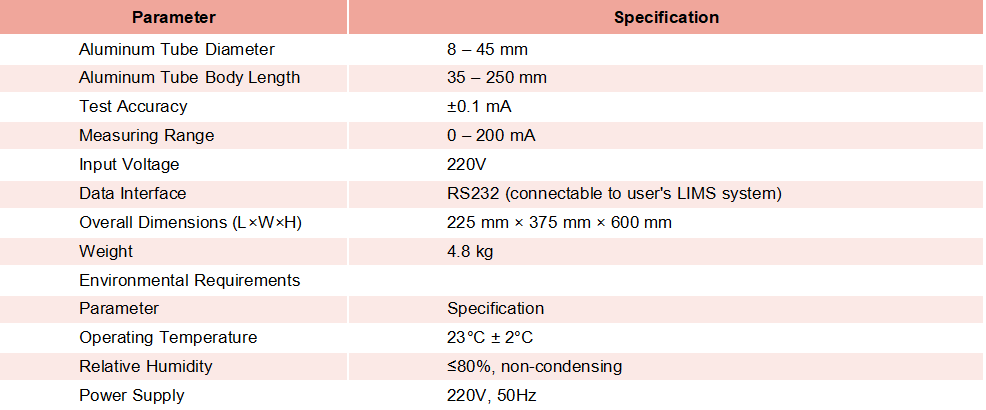

Technical Specifications
Compliance & Standards
ASTM D 1186 / D 1400, YBB 00162002-2015
