Product Overview

Sumspring FS-5S Syringe Seal Integrity Negative Pressure Tester is designed for negative pressure seal testing of disposable syringes and other related materials. Utilizing advanced sensor and measurement technology, the instrument achieves high-precision pressure and leakage measurement. It offers multiple test modes to meet the testing requirements of syringes of different specifications and types.

Application

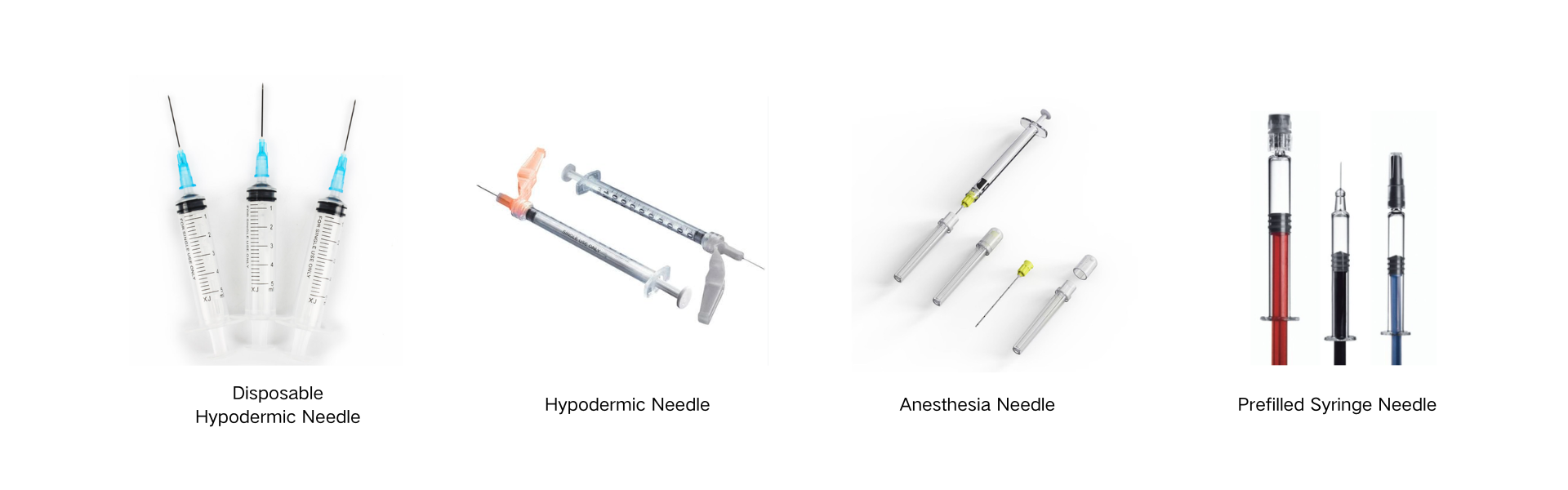

ZY-6S Syringe Seal Integrity Positive Pressure Tester is primarily designed for positive pressure seal integrity testing of disposable syringes, low‑resistance syringes, self‑destructive syringes, and pre‑filled syringes.

Key Features & Advantages

• Color touch screen control for easier operation and more intuitive data display
• Simple and convenient testing and calibration
• Automatic constant‑pressure air supply ensures the test process runs at the preset vacuum level
• Imported brand vacuum components offer stable performance and long‑lasting durability
• One‑button operation – automatic vacuum switching, automatic test termination, and automatic reverse blow for pressure release
• User hierarchical permission management ensures data integrity and standardization
• Multiple test data sets can be stored for easy user retrieval
• Built‑in micro printer for fast test result printing
• ISP (In‑System Programming) online upgrade capability provides customized service
• High‑speed processing chip significantly improves operating speed
• Multi‑step segmented vacuum pressure and hold time can be freely set to simulate and evaluate product seal integrity under different vacuum levels
• Vacuum pressure and hold time for each segment are freely adjustable, suitable for different product testing requirements

Technical Specifications

Compliant Standards

YY/T 0573.3-2019 Sterile syringes for single use – Part 3: Auto‑disable syringes for fixed‑dose vaccination

YY/T 0573.4-2020 Sterile syringes for single use – Part 4: Syringes with re‑use prevention feature

ISO 7886-4（Sterile hypodermic syringes for single use – Part 4: Syringes with re‑use prevention feature）

GB 15810-2019 Sterile syringes for single use

ISO 7886-1（Sterile hypodermic syringes for single use – Part 1: Syringes for manual use

ISO 7886 Sterile hypodermic syringes for single use – Auto‑disable syringes

Y/T 0497-2018 Sterile insulin syringes for single use

ISO 7886-3（Sterile hypodermic syringes for single use – Part 3: Auto‑disable syringes for fixed‑dose vaccination）

ISO 8537（Sterile single‑use syringes for insulin injection）
