Product Overview
90° Peel Strength Tester is a high‑precision mechanical testing instrument designed specifically for adhesive products, composite sheets, flexible films, and other materials. Its core function is to measure the peel strength and release force of various bonded materials under a constant 90° peel angle. It is an essential precision instrument for material R&D, finished product quality control, incoming material inspection, and process optimization. Widely applicable to standardized testing scenarios across multiple industries, it provides accurate data support for product bonding stability and durability.
Key Features & Advantages
Micro‑computer controlled with large LCD display showing the test process for clear and intuitive operation
Branded motor drive system combined with precision ball screw multi‑axis positioning technology ensures smooth operation and accurate displacement
Imported brand force measurement system delivers ultra‑high test accuracy and ensures reliable test results
Intelligent safety features including limit protection, overload protection, automatic return, and power‑off memory ensure operator safety
Built‑in micro printer prints complete test information including instrument serial number, sample batch number, operator, test results, and test date/time
Interchangeable sensors with multiple measuring ranges – user‑replaceable for wide range and high precision
Unique 4‑level user hierarchical permission management ensures data integrity and standardization
Customizable permission control allows flexible definition of access rights at each level, strictly limiting who can perform specific operations
Comprehensive password protection prevents unauthorized access and ensures data traceability
Advanced encrypted data storage guarantees every test record remains complete, secure, and tamper‑proof
ISP (In‑System Programming) online upgrade capability provides customized service

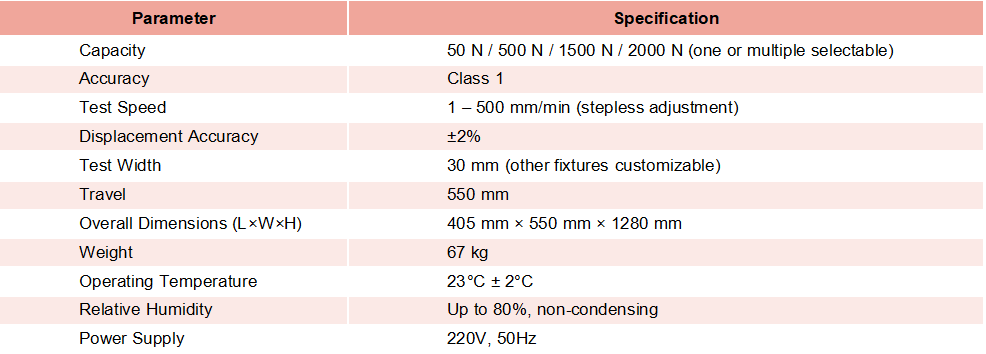

Technical Specifications
Compliance & Standards
ASTM D3330
GB/T 2792
Standard Configuration
Main unit, Micro printer, Fixture, Test plates
