Product Overview

YYB-03 Medical Packaging Tear and Tensile Tester – designed for pharmaceutical packaging materials including ampoules, rubber stoppers, combination caps, films, aluminum foil, PVC rigid sheets, pen injectors, pre-filled syringes, and hypodermic needles. It performs break force, puncture force, sliding force, seal integrity, opening force, tensile strength, heat seal strength, peel strength, and other tensile/compression/tear tests.

Test Principle

The specimen is placed between two moving clamps. Special fixtures are used for puncture or opening force testing while the system records force and displacement changes to calculate the force values.

Key Features & Advantages

• Large LCD touch screen displays test process curves; micro-computer controlled for fast and convenient operation
• Worldwide renowned imported brand sensor system ensures accurate and reliable test results
• A single instrument supports over 10 independent test items including tensile/compression, peel strength, opening force, and puncture force, meeting various packaging material testing requirements
• Ball screw drive system with adjustable speed ensures stepless speed control and accurate displacement
• Built-in micro printer prints complete test information including instrument serial number, sample batch number, operator, test results, and test date/time
• Interchangeable fixtures allow expansion to various test types
• Intelligent features such as limit protection and automatic return ensure operator safety
• Unique 4-level user hierarchical permission management ensures data integrity and standardization
• Customizable permission control allows flexible definition of access rights at each level, strictly limiting who can perform specific operations
• Comprehensive password protection prevents unauthorized access and ensures data traceability
• Advanced encrypted data storage guarantees that every test record remains complete, secure, and tamper-proof
• ISP online upgrade capability provides customized service
• GMP-compliant data management – local storage, automatic processing, and statistical analysis
• Meets Chinese GMP requirements for data traceability, satisfying the needs of the pharmaceutical industry
• Optional Sumspring Link-DMS testing software system allows backup of raw data as an unalterable database on a computer, and export as PDF files

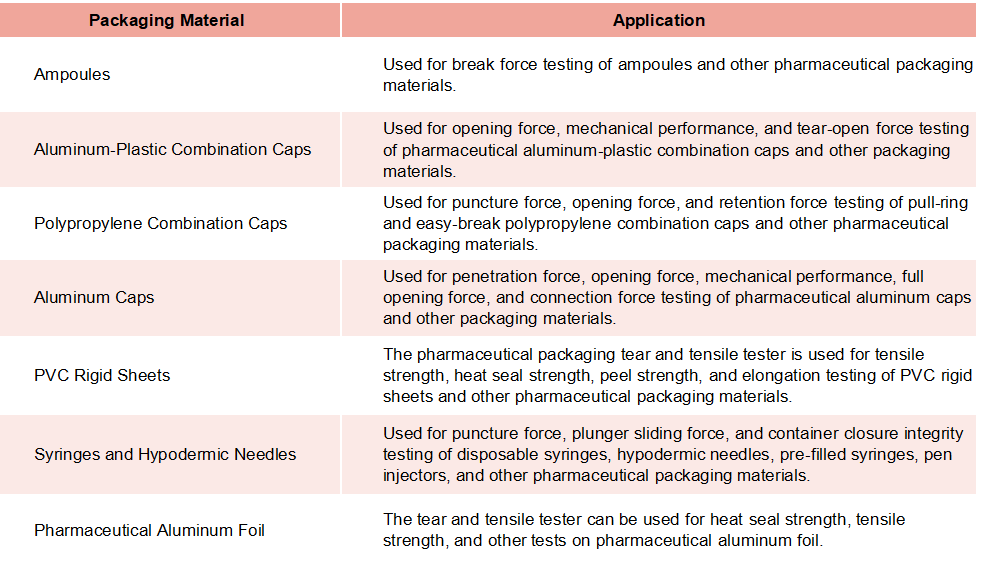

Applications

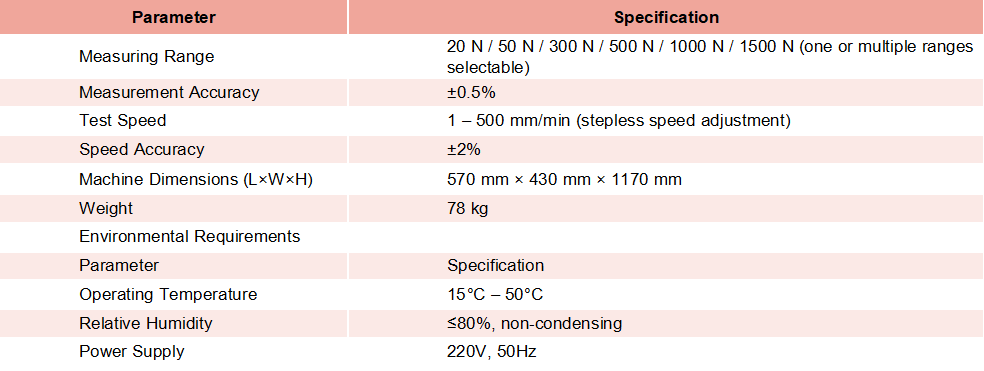

Technical Specifications

Compliance & Standards

ISO 11040-4, ISO 7864, ASTM F88, ASTM D903, ISO 527-3, ASTM F2029, ASTM F88, ISO 8871-1, ISO 8362-6, ISO 8536-7, ISO 8362-6, ISO 9187-1, ISO 7886-1, ISO 7864, YBB 00112004-2015, YBB 00102003-2015, YBB 00112003-2015, YBB 00122003-2015, YBB 00042005-2015, YBB 00372003-2015, YBB 00212005-2015, YBB 00342002-2015, YBB 00242004-2015, YBB 00152002-2015, YBB 00082005-2015, YBB 00332002-2015, GB 15810-2019, GB 15811-2016
