Product Overview
In glass container testing standards, internal pressure resistance is a critical performance indicator. NLY-03 Glass Bottle Internal Pressure Tester developed and manufactured by Sumspring fully complies with national standard GB/T 4546-2008 as well as international standard ISO 7458:2004.
This instrument is widely used for internal pressure resistance testing of various glass bottles, including beer bottles, wine bottles, beverage bottles, infusion bottles, and antibiotic vials. It provides strong support for ensuring the quality and safety of glass containers.
Testing Principle
According to GB/T 4546-2008 (Test method for internal pressure resistance of glass containers), two test methods for determining the internal pressure resistance of glass containers are specified: Method A and Method B.
Method A – Constant Internal Pressure Test
Method A is a test where a constant internal pressure is applied within a predetermined time. Within the specified time, the instrument applies a constant pressure to the glass bottle, and the bottle is observed to see whether it can withstand the pressure without breaking. If the glass bottle remains intact for the specified time, it indicates that its internal pressure resistance meets the requirements.
Method B – Increasing Internal Pressure at a Constant Rate
Method B is a test where the internal pressure is increased at a predetermined constant rate. The instrument increases the pressure inside the glass bottle at a constant rate, and the point at which the bottle breaks is observed. This method allows for a more accurate determination of the maximum internal pressure resistance limit of the glass bottle, providing manufacturers with more precise data for reference.
Key Features & Advantages
Large LCD display with PVC operation panel – convenient and practical
Automatic water filling function – reduces manual workload
4 test modes fully meet standard requirements, including Constant pressure hold test, Pressurization without hold test, Burst test
One-button operation – the entire test process is displayed in real time
Built-in micro printer – quickly prints test results
No complex hydraulic system – reduces leakage risk and simplifies maintenance
User hierarchical permission management – ensures data integrity and standardization
ISP online upgrade capability – provides customized service
Applications
Designed for internal pressure testing of beer bottles, beverage bottles, vials, infusion bottles, and more. Also supports pressure hold and burst pressure tests for glass bottles of various capacities.

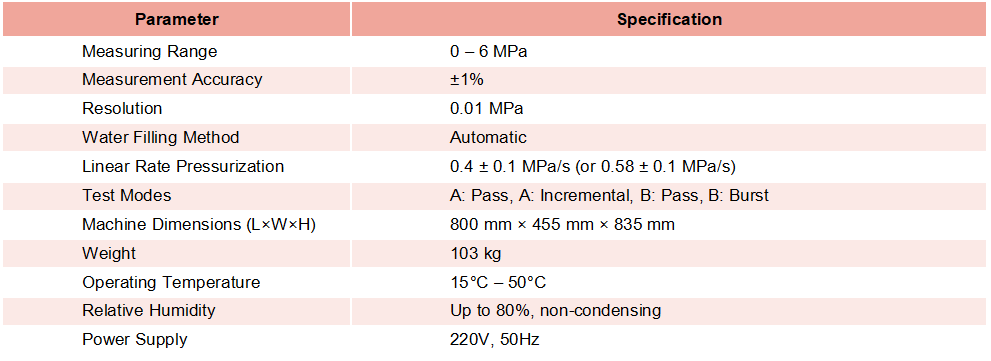

Technical Specifications
Compliance & Standards
ISO 7458:2004, GB/T 4546-2008 、YBB00172003-2015
