Product Overview

RCY-05 Glass Bottle Thermal Shock Resistance Tester is designed to test the thermal shock resistance of glass bottles under sudden temperature changes. It is a critical quality control device in industries such as brewing, beverage, and pharmaceutical manufacturing, where sterilization processes are essential. Suitable for a wide range of glass containers—including infusion bottles, antibiotic vials, beer bottles, and beverage bottles—it serves quality inspection agencies, breweries, pharmaceutical companies, and glass bottle manufacturers.

Key Features & Advantages

Large full-color touch screen display – standalone operation without the need for a computer; stores and queries test results, eliminating the cumbersome need to connect to a PC for every test; users can export test data on demand

Comprehensive password protection with 4-level user permission management – each operator must log in with a unique username and password to access the instrument

GMP-compliant data management – includes local storage, automatic processing, and statistical test data analysis; data can be exported in non-modifiable/deletable formats for permanent test result preservation

Built-in micro printer – prints complete test information including instrument serial number, sample batch number, operator, test results, and test date/time

ISP online upgrade capability – provides customized service

Large test capacity – meets the testing needs of all glass containers

Automatic sample preparation – significantly improves repeat test efficiency

Cantilever structure with patented technology – more durable and long-lasting

High-speed processor chip – greatly improves operating speed

Heating tank, cooling tank, and sample rack all made of stainless steel – durable and long-lasting

Motorized sample rack lift – easy to use and reduces operator workload

Leakage protection device – ensures safe and reliable operation

Optional Sumspring Link-DMS testing system – allows raw data to be backed up on a computer as an unalterable database and exported as PDF files

Applications

Designed for suitable for glass bottle manufacturers, optical instrument manufacturers, and laboratories for measuring stress values in optical glass, glass products, and other optical materials.

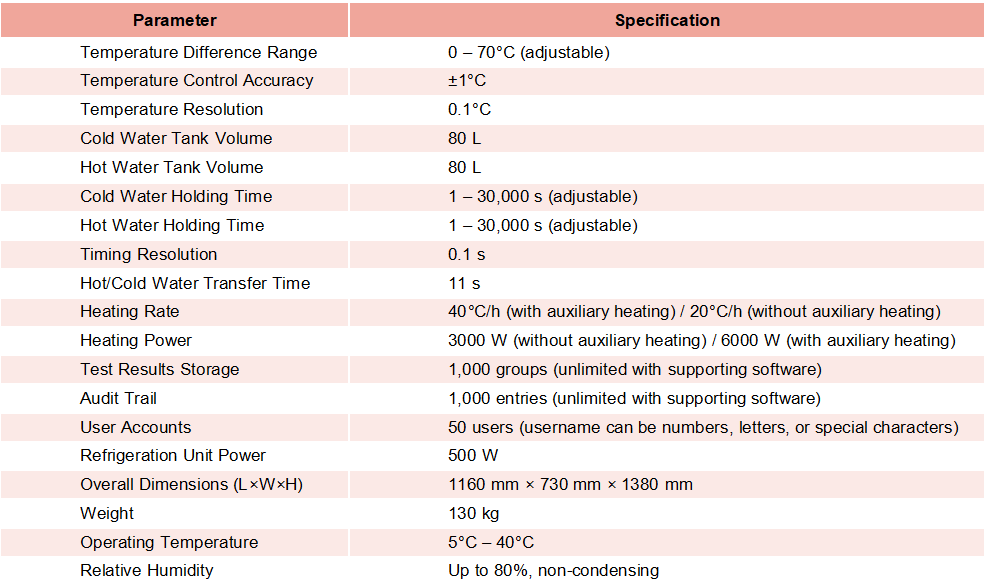

Technical Specifications

Compliance & Standards

GB/T4547  YBB00182003-2015
