Product Overview

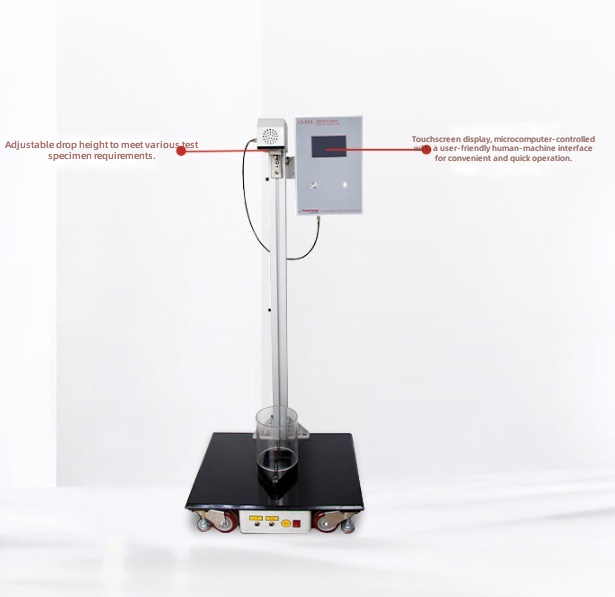

LQ-50S Ball Drop Impact Tester (Rigid Sheet) is designed to evaluate the damage resistance of plastic sheets with a thickness of less than 2 mm under the impact of a steel ball dropped from a specified height. It is widely used by quality inspection centers, pharmaceutical companies, and packaging manufacturers.
Test Principle
A PVC rigid sheet specimen is clamped on the tester. A steel ball is dropped from a set height onto the center of the specimen. Damage is checked and the damage rate is calculated after repeated tests.
Key Features & Advantages
- Multiple steel balls available to meet different standard requirements
- Adjustable drop height to accommodate different specimen requirements
- Built‑in observation light for user convenience
- Pneumatic specimen clamping and release for faster and more accurate test operation
- Electromagnetic ball holding and automatic release effectively avoids systematic errors caused by human factors
- Foot switch activation mode for user‑friendly operation
- Equipped with safety guard for a safer testing process
- Center positioning device ensures reliable test results

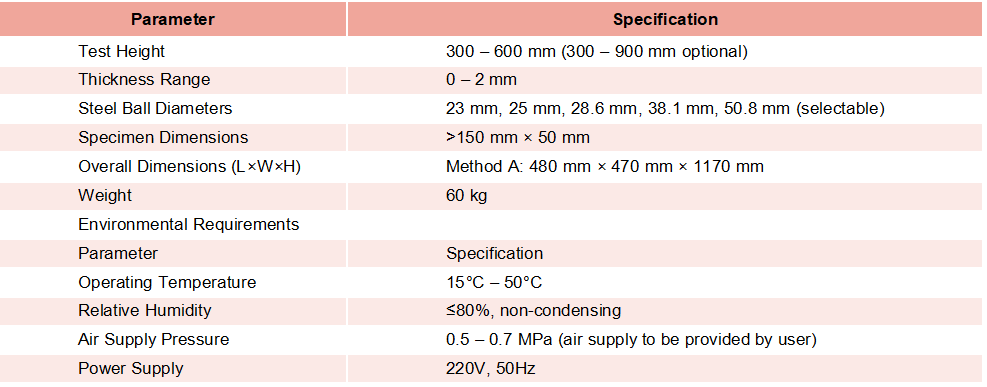

Technical Specifications
Compliance & Standards
GB12415-90, GB2641-90, GB2639-90
