Product Overview
NPD-1000S Fully Automatic Burst Strength Tester for Pharmaceutical Aluminum Foil – designed for burst/rupture strength testing of pharmaceutical aluminum foil. Fully automatic operation: the instrument automatically clamps, tests, and prints results with minimal operator involvement. Widely used by pharma packaging manufacturers, drug companies, and QC labs.
Key Features & Advantages
- Large color LCD display shows test results including individual measurement values and statistical data.
- Touch screen control with real‑time test process display for convenient operation.
- High‑speed processing chip significantly improves operating speed.
- Safety guard ensures a safer testing process.
- Pneumatic sample clamping with one‑button operation eliminates human error during testing.
- RS232 serial port supports LAN data transmission and ISP online upgrade to meet customer‑specific requirements.
- Non‑subjective test results require no manual intervention, ensuring accurate and objective data.
- Ball screw drive system with adjustable speed ensures accurate test speed and displacement control.
- Built‑in micro printer quickly prints burst strength test results.
- Computer software operating system allows users to connect to a computer for data storage, analysis, and printing.
Applications
Pharmaceutical Aluminum Foil

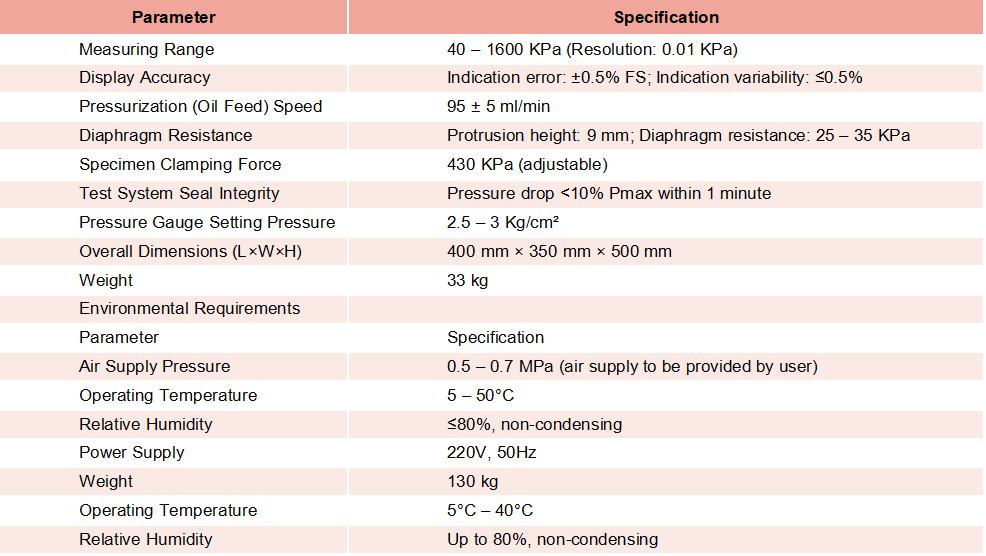

Technical Specifications
Compliance & Standards
YBB00152002-2015, GB12255-90
