Product Overview

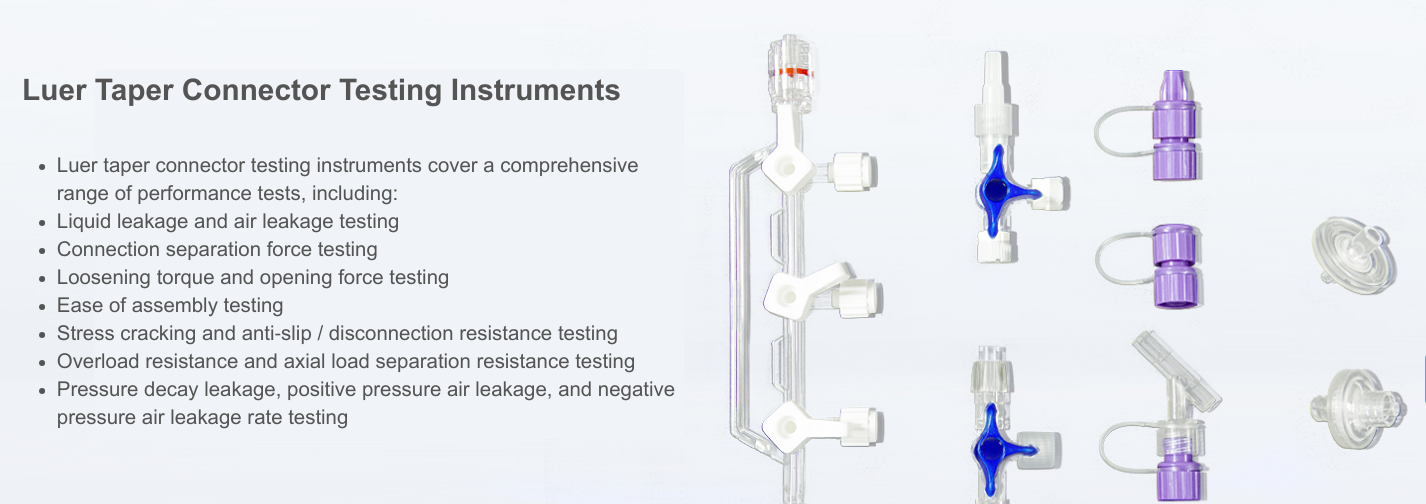

RJT-05S Luer Connector Tester – designed for locking and non‑locking Luer connectors used in infusion sets, transfusion sets, needles, catheters, and anesthesia filters. Offers multiple test modes: liquid leakage, air leakage, separation force, stress cracking, loosening torque, and thread stripping resistance. Widely used in testing labs.
Application
Key Features & Advantages
- Touch screen control for easier operation and more intuitive data display
- Simple and convenient testing and calibration
- Built-in program with one-button operation – instrument automatically determines test completion and automatically judges pass/fail
- Displays applied axial force, torque, hold time, internal water pressure, and separation force during assembly; tests syringe and needle performance including liquid leakage, air leakage, separation force, loosening torque, ease of assembly, thread stripping resistance, and stress cracking
- Imported sensor system delivers high test accuracy and ensures reliable test results
- User hierarchical permission management ensures data integrity and standardization
- Built-in micro printer for fast test result printing
- Multiple test data sets can be stored for convenient user retrieval
- Interchangeable fixtures allow expansion to various test types
- ISP (In-System Programming) online upgrade capability provides customized service

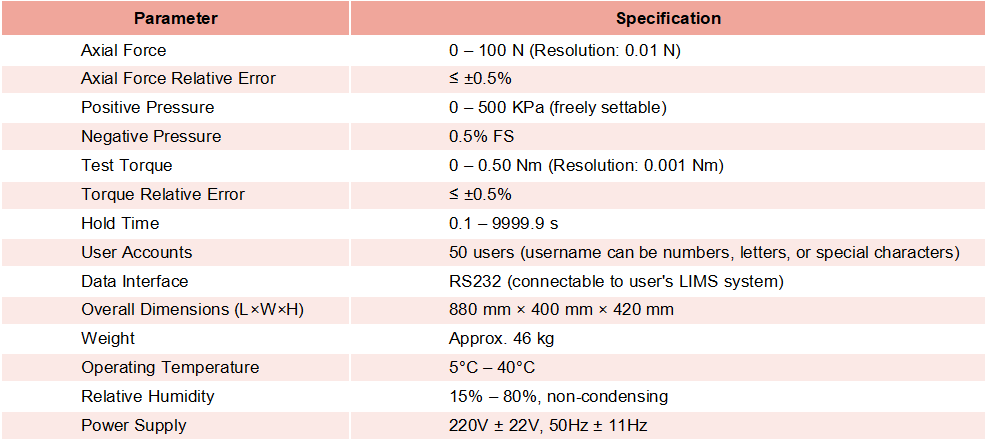

Technical Specifications
Compliant Standards
GB/T 1962.1、GB/T 1962.2 、YY/T 1842.7、YY/T 1842.8
