Product Overview

YLY-03S Polariscope (Glass Stress Tester) is suitable for measuring internal stress values in various glass products, including glassware, glass measuring instruments, glass containers, and glass bottles for pharmaceutical and food packaging.

Testing Principle

YLY-03S Polariscope is an instrument that uses the principle of polarized light interference to inspect internal stress in glass or the birefringence effect in crystals. Equipped with a sensitive tint plate and utilizing the quarter-wave plate compensation method, this instrument can not only qualitatively or semi-quantitatively measure the internal stress in glass based on the interference color sequence in the polarization field, but also accurately measure the numerical value of the internal stress.

Key Features & Advantages

Patented SBC image recognition technology – automatically determines stress values

Qualitative and quantitative test modes – wide range of applications

Windows operating system, automatically judges test results, effectively eliminating visual differences between different operators

High-resolution visual imaging – facilitates multi-operator testing and comparative experiments, reducing test errors

Unique 4-level user hierarchical permission management – ensures data integrity and standardization

Customizable permission control – flexible definition of access rights at each level, strictly limiting who can perform specific operations

Comprehensive password protection – prevents unauthorized access and ensures data traceability

Advanced encrypted data storage – guarantees that every test record remains complete, secure, and tamper-proof

GMP-compliant data management – includes local storage, automatic processing, and statistical test data analysis

Meets Chinese GMP requirements for data traceability – satisfying the needs of the pharmaceutical industry

Raw data can be backed up on a computer as an unalterable database – and exported as standard test reports

Applications

Designed for suitable for glass bottle manufacturers, optical instrument manufacturers, and laboratories for measuring stress values in optical glass, glass products, and other optical materials.

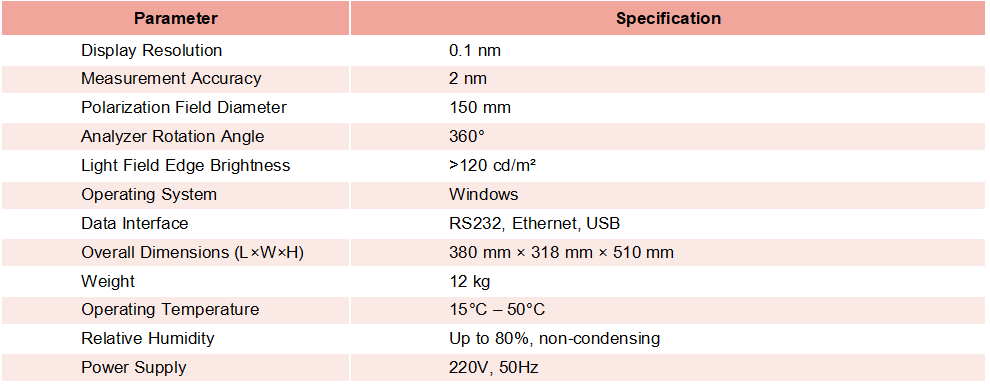

Technical Specifications

Compliance & Standards

ASTM C148, YBB00332002-2015, YBB00162003-2015, GB12415, GB15726, GB4545
