Product Overview

MFY-HS Intelligent Sealing Tester is an advanced, highly reliable instrument designed for leak and seal integrity testing using internationally recognized Probabilistic Methods. It uniquely integrates both vacuum (negative pressure) and pressurization (positive pressure) testing mechanisms into a single unit.

Key Features & Advantages

Dual Positive & Negative Pressure Integrated Design

Combines both vacuum (-90 kPa) and positive pressure (+400 kPa) testing capabilities. This allows laboratories to switch effortlessly between vacuum-driven dye tests and high-pressure microbial challenges on a single machine.

Versatile Probabilistic Testing Support

Fully supports multiple experimental setups, including the conventional Methylene Blue Dye Method, Microbial Challenge Tests, and custom multi-parameter stress tests.

Intelligent Automation & Real-Time Curves

Features an industrial-grade touchscreen with an intuitive UI. It offers one-key automation for automatic mode switching, automatic pressure maintenance (constant air replenishment), and automatic back-blow discharge upon test completion. Testing curves are displayed in real-time for easy monitoring.

GMP Data Traceability & Built-In Printing

Fully complies with GMP requirements for data integrity, featuring automatic local storage, data processing, and statistical analysis.

Equipped with a built-in micro-printer to immediately output comprehensive test reports, including test sequences, batch numbers, operator IDs, results, and time stamps.

Features a secure user system holding up to 50 accounts, 1,000 data logs, and 1,000 audit trails (expandable to unlimited storage via optional PC software).

Premium Hardware Componentry

Built with high-speed processing microchips and world-renowned imported vacuum/pneumatic components to ensure exceptional accuracy (Class 0.5 precision) and long-term durability.

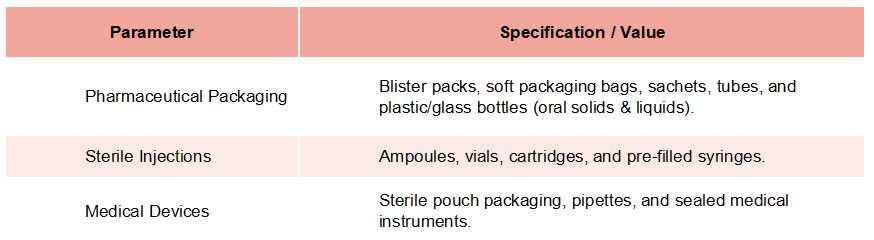

Applications

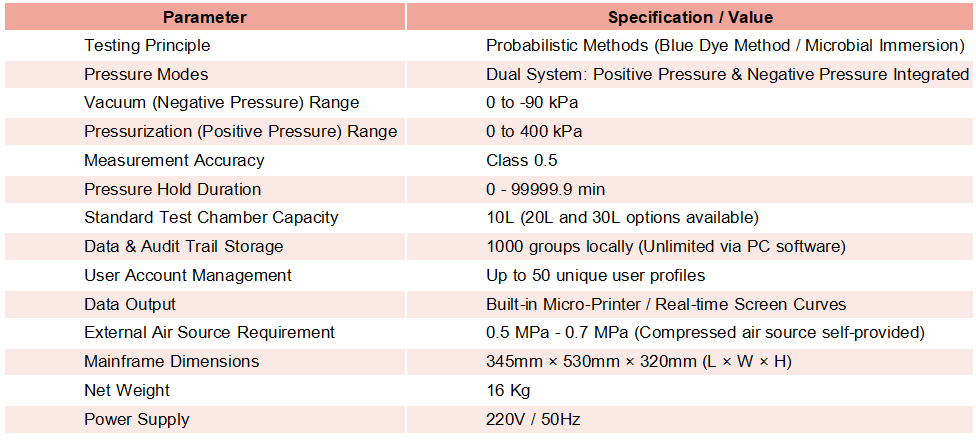

Technical Specifications

Compliance & Standards

USP1207, GB/T15171, YBB00112002-2015, YBB00122002-2015,  YBB00262002-2015,  YB00052005-2013, YBB00092002-2015, YBB00392003-2015, YBB00112002-2015, YBB0025205-2015, YBB00162002-2015
